Project Snapshot
Location
Stretford (M32)
Duration
2 days
Project Type
Gallow Bracket Installation to Support Chimney
Challenges
Structural adjustments
This project addressed an unsupported chimney breast following previous alterations to the property. To stabilise the remaining masonry safely, Guardian Structural installed gallow brackets in accordance with a structural engineer’s design, along with fire-resistant boarding to comply with current Building Control requirements.
The work was carried out within the loft space, with careful attention to structural load transfer, fire protection, and long-term safety.
The Issue Identified

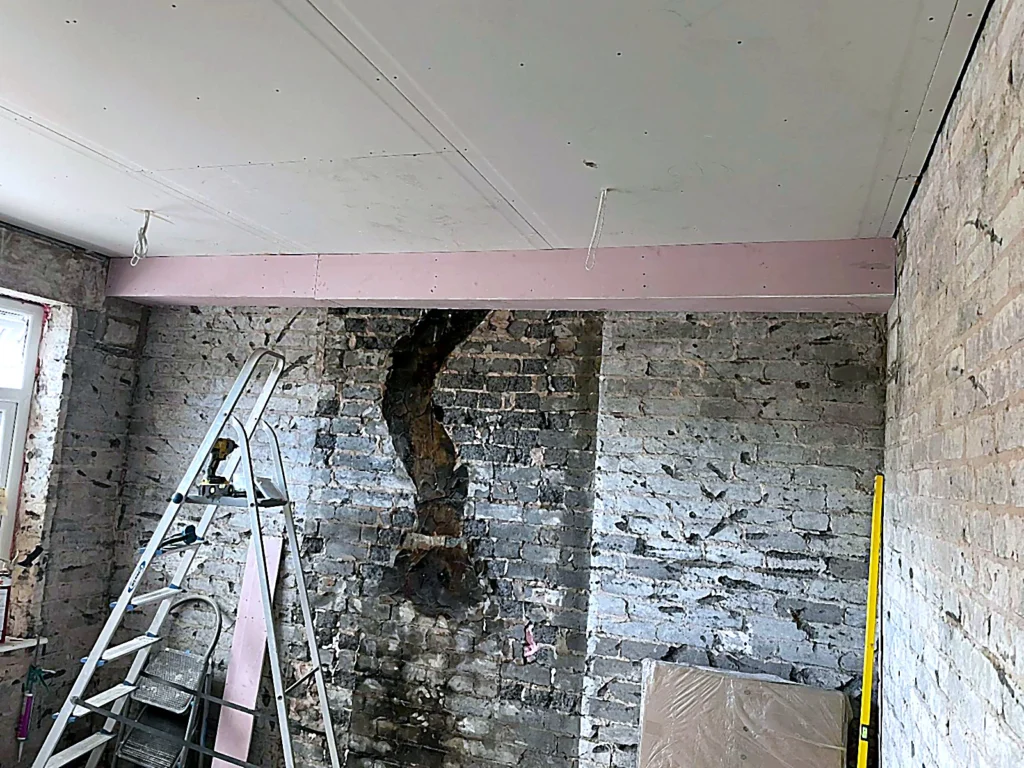

During inspection, it was found that the chimney stack was no longer adequately supported. This can occur when lower-level chimney breasts are removed without installing permanent structural support.
Left unaddressed, an unsupported chimney presents:
- Risk of cracking or collapse
- Safety concerns for occupants
- Potential Building Control enforcement issues
- Problems during future property sale or survey
Structural Assessment & Key Decisions
A structural engineer was engaged to assess the load and specify an appropriate solution.
Key decisions included:
- Installing steel gallow brackets to support the remaining chimney masonry
- Fixing brackets into sound load-bearing walls
- Applying fire-resistant boarding to protect the steel and comply with regulations
Professional judgement:
Given the confined loft space and condition of the surrounding structure, gallow brackets provided the most effective and minimally invasive solution compared to alternative support methods.
Method of Work (Step-by-Step)
1. Preparation & Access
Safe access was established within the loft, and the surrounding area protected.

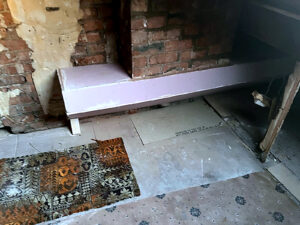

2. Gallow Bracket Installation
Steel gallow brackets were installed exactly as per the structural engineer’s calculations, ensuring correct load transfer to supporting walls.
3.Fire Protection Works
The steelwork was fire-boarded in line with current Building Control standards.
4. Final Checks
Fixings, alignment, and support were checked before sign-off.
Compliance & Building Control
This project was delivered with full regulatory consideration:
- Structural engineer design followed precisely
- Gallow brackets installed to specification
- Fire protection applied to meet current Building Regulations
- Work suitable for Building Control approval and future surveys
This ensures the chimney is safe, compliant, and insurable.
Outcome
Chimney structure safely supported
Fire-protected steelwork in place
Compliance achieved without unnecessary disruption
Long-term peace of mind for the homeowner
Chimney structure safely supported
Fire-protected steelwork in place
Compliance achieved without unnecessary disruption
Long-term peace of mind for the homeowner
The solution stabilised the chimney while preserving the integrity of the property.
Dealing with an Unsupported Chimney?
Unsupported chimneys are a common issue in older properties and must be addressed correctly.
Guardian Structural provides:
- Chimney support solutions
- Gallow bracket installation
- Structural engineer designs
- Building Control coordination
